EF-250

For mattresses

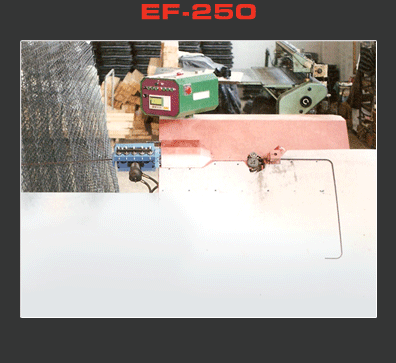

EF-250 Automatic forming machine for frames
(from round wire or strip)

• Easy and flexible programming of the production

• User friendly computer unit

• Perfect straightening of round wire

• Flexibility to choose the clipping or welding point

• Capability to storage many different shapes and dimensions

• Easy change of wire diameter or strip dimensions

• Simple or motorised swift (250kg, 1200kg)

• Hydraulic or servo technology depending on production requirements

TECHNICAL SPECIFICATIONS
Steel strip max. - min	12x3mm -8x1.2 and wire dmax 5.5mm
Max. material tensile strenght	180kg / mm
Bending speed	800 / sec
Power unit speed	40 / min
Accuracy range	aprox. 0.2mm
Accuracy angle	aprox. 0.5
Max. side	2500mm
Min. side	110mm
Total consumption	7.5kW
Dimensions	1800(L) x 1000(W) x 1300(H)
